Recessed Covers & Frames
Recessed covers for tile or interlocking block infill, classes A15, B125 and D400.
Load Classes
A15
B125
D400
Material
Cast iron / Ductile iron
Standards
EN 124 / BS 497
Finish Options
On request

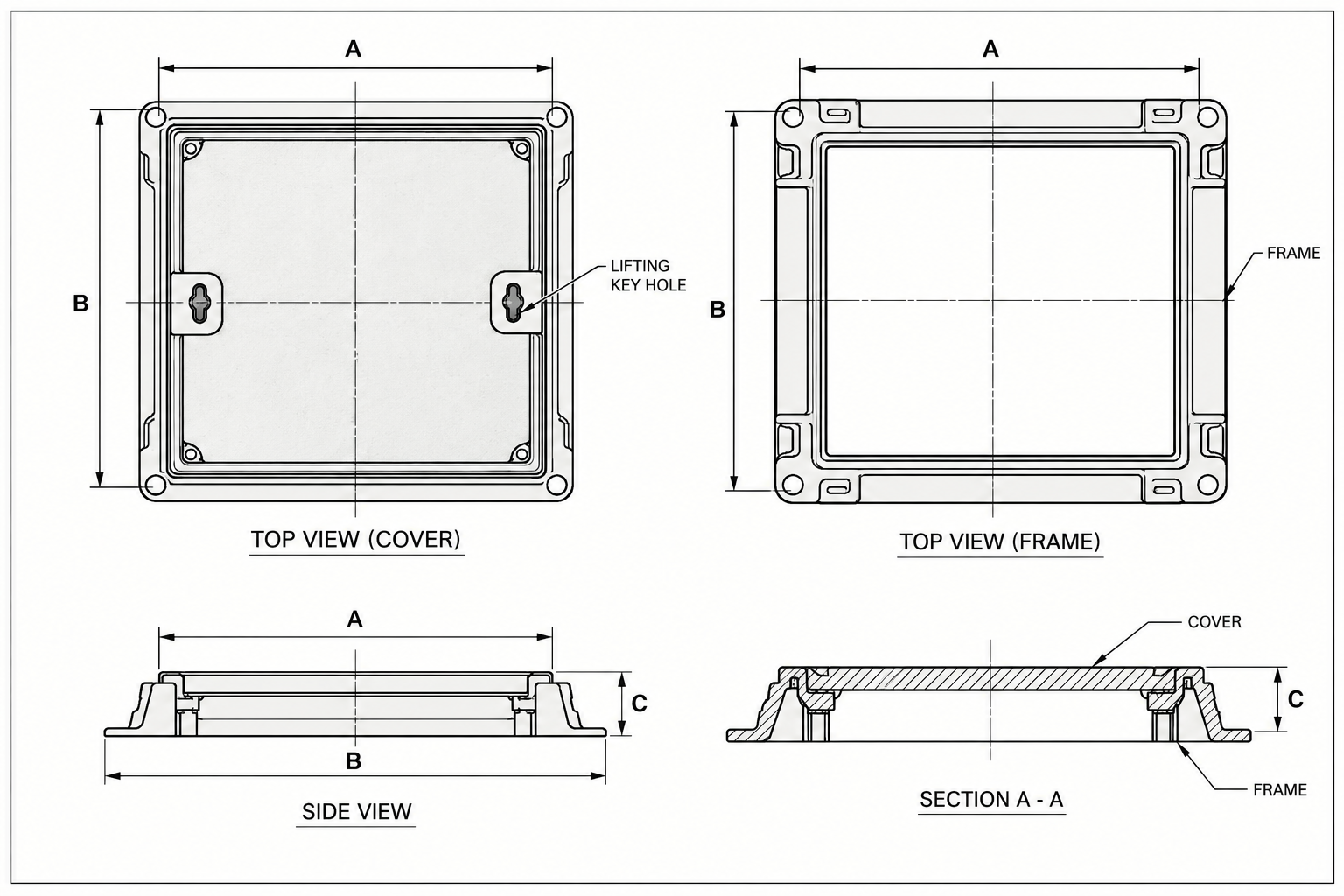

Dimension Drawing
Catalogue Specifications
| Product Code | Grade as per BS-497-76 | Clear Opening A (mm) | Overall Base B (mm) | Height C (mm) | Grade as per BS-EN124 | Approx. Weight kg ±5% |
|---|---|---|---|---|---|---|
| DCPL-1067 | – | 300 x 300 | 455 x 455 | 65 | B125 | 30.0 |
| DCPL-1068 | – | 300 x 300 | 455 x 455 | 95 | B125 | 36.0 |
| DCPL-1069 | – | 300 x 300 | 455 x 455 | 95 | D400 | 50.0 |
| DCPL-1070 | – | 450 x 450 | 600 x 600 | 75 | B125 | 45.0 |
| DCPL-1071 | – | 450 x 450 | 610 x 610 | 90 | B125 | 55.0 |
| DCPL-1072 | – | 450 x 450 | 610 x 610 | 90 | D400 | 80.0 |
| DCPL-1074 | – | 600 x 600 | 750 x 750 | 75 | B125 | 70.0 |
| DCPL-1075 | – | 600 x 600 | 760 x 760 | 90 | B125 | 75.0 |
| DCPL-1076 | – | 600 x 600 | 765 x 765 | 90 | B125 | 90.0 |
Product Description
Recessed covers and frames that take a paving infill so the finished surface matches its surroundings, available for tile and interlock fitting. Recess depth is given for every code.
Key Features
- Tile and interlock fitting types
- Recess depth listed per code
- Double seal versions
Application Areas
Paved plazas and walkways
Landscaped and architectural areas
