Manhole Covers & Frames

Circular Manhole Covers

Circular covers with circular or square frames, in cast iron and ductile iron, classes A15 to D400.

Load Classes

A15 B125 C250 D400

Material Cast iron / Ductile iron

Standards EN 124 / BS 497

Finish Options On request

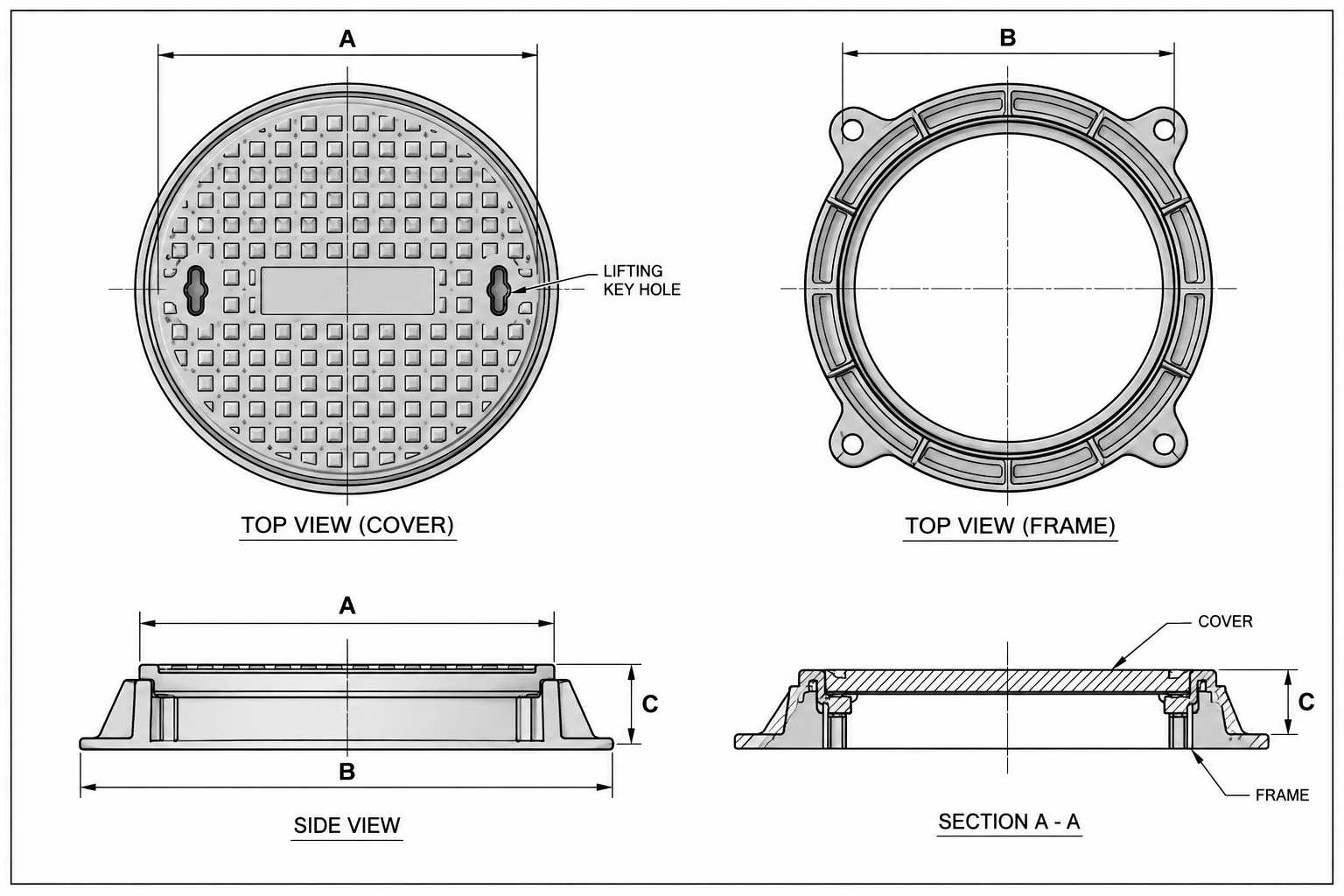

Dimension Drawing

Catalogue Specifications

Product Code	Grade as per BS-497-76	Clear Opening A (mm)	Overall Base B (mm)	Height C (mm)	Grade as per BS-EN124	Approx. Weight kg ±5%
DCPL-1092	B	550 DIA	670 DIA	85	B125	45.0
DCPL-1093	B	600 DIA	715 DIA	75	B125	50.0
DCPL-1094	A	600 DIA	755 DIA	75	C250	90.0
DCPL-1095	A	600 DIA	815 DIA	100	D400	90.0
DCPL-1098	A	600 DIA	875 DIA	200	D400	210.0
DCPL-1100	A	600 DIA	750 x 750	100	D400	110.0
DCPL-1101	A	600 DIA	690 x 690	125	D400	130.0
DCPL-1079	C	450 DIA	555 DIA	55	A15	16.0
DCPL-1080	C	450 DIA	665 DIA	80	A15	35.0
DCPL-1081	B	550 DIA	670 DIA	85	B125	45.0
DCPL-1083	C	600 DIA	715 DIA	75	A15	50.0
DCPL-1084	B	600 DIA	755 DIA	75	B125	90.0
DCPL-1086	A	600 DIA	755 DIA	100	D400	150.0
DCPL-1087	A	600 DIA	875 DIA	150	D400	165.0
DCPL-1088	A	600 DIA	875 DIA	200	D400	210.0
DCPL-1089	B	665 DIA	755 DIA	50	B125	80.0
DCPL-1090	A	600 DIA	750 x 750	100	D400	110.0
DCPL-1091	A	600 DIA	690 x 690	125	D400	130.0

Circular manhole covers with a circular or square frame, in cast iron and ductile iron. Clear opening and base size are listed for every code.

Roads and carriageways

Utility and drainage access chambers
